2nd Generation Eye Physiotherapy Device
2nd Generation Eye Physiotherapy Device
Couldn't load pickup availability

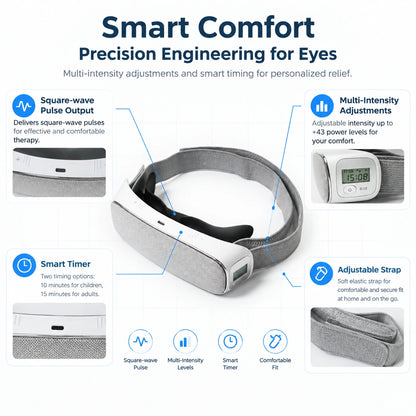

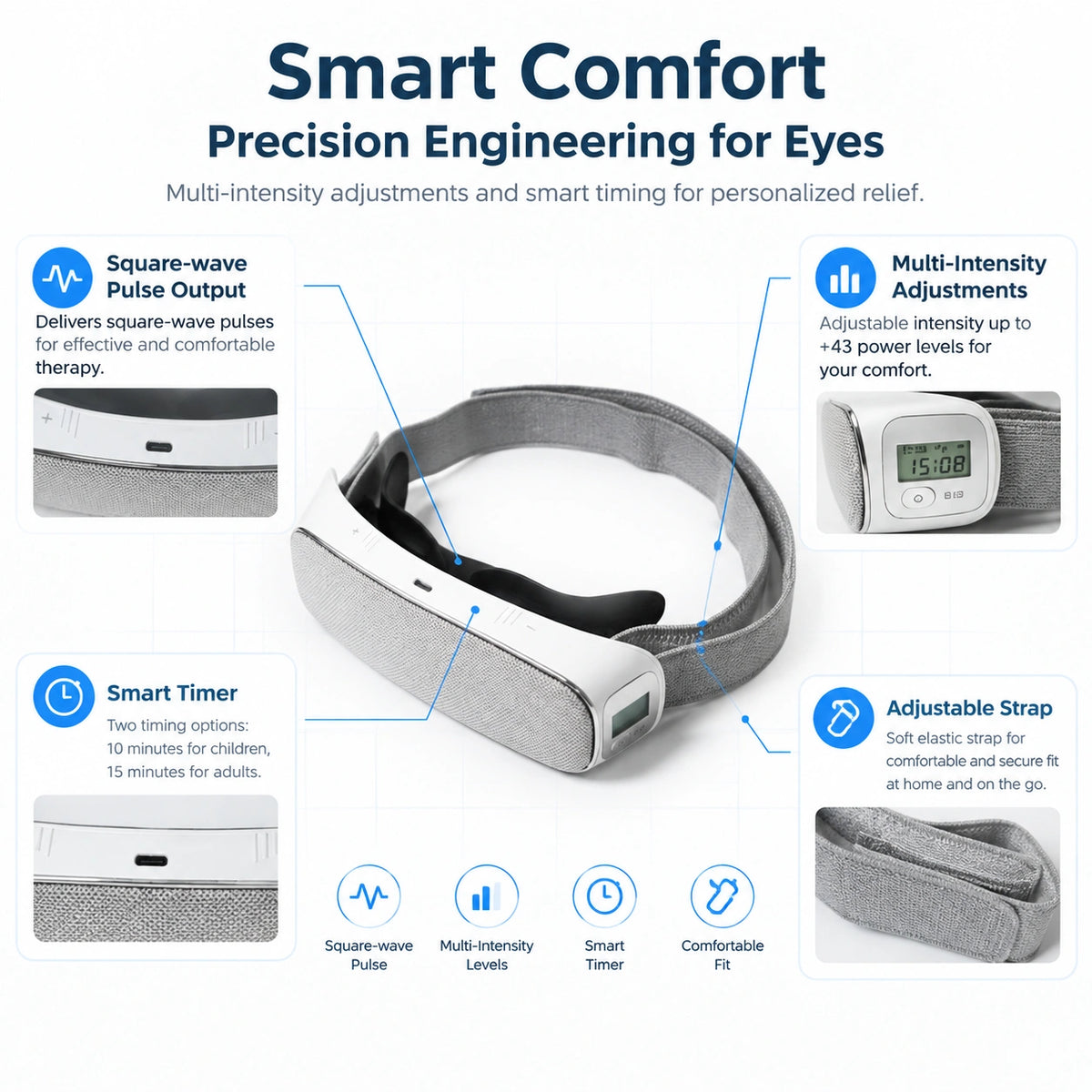

Ⅰ. Highlights
1. Fit & Close-Fitting Electrode Design
Ring-shaped silicone conductive electrodes closely fit the skin around eyes, evenly transmit low-frequency pulse current, fit various face shapes without slipping during use.
2. LCD Visual Display Design
Equipped with integrated LCD screen, real-time display of remaining treatment time and current intensity, operation status is clear at a glance.
3. Simple One-Key Control Design
Independent buttons for power, time, intensity increase/decrease; each adjustment comes with beep prompt, easy for students and the elderly to operate.
4. Portable Rechargeable Design
Built-in 3.7V lithium polymer battery, charged via USB cable and power adapter, cord-free for home, study and travel use.
Ⅱ. Therapeutic Principle
The instrument adopts low-frequency modulated intermediate current, and delivers transcutaneous electrical stimulation around eyes through ring conductive electrodes. It relieves spasm of intraocular and extraocular muscles, improves eye adjustment ability, balances periorbital muscle tension. Meanwhile, it regulates nervous system, accelerates blood circulation and metabolism around eyes, effectively alleviates eye fatigue, dry eyes and pseudomyopia.
Ⅲ. Technical Parameters
| Product name | 2nd Generation Eye physiotherapy device |
| Timing range | 10/15 min adjustable |
| Product number | KJR-D-A2 |
| Display mode | Liquid crystal display |
| Power supply | Lithium polymer DC3.7V |
| Output current | ≤1.7mA |
| Pulse frequency | 20Hz±10% |
| Working environment | Temperature 5°-40° Relative humidity≤80% |
| Applicable symptoms | Myopia / Asthenopia / Blurred vision / Eye tired / Dry eyes / Tears |
| Contraindications | Eye skin damage, inflammation, glaucoma, pacemaker patients, hemorrhagic patients, allergy to electrotherapy, epilepsy, tumor patients, pregnant women |
Ⅳ. Applicable Symptoms
ALL-IN-ONE EYE RELIEF SOLUTION For Students & Office Workers Relieve eye fatigue, dry eyes, eye pain, photophobia Improve dizziness, poor concentration and pseudomyopia.
Ⅴ. How to Use
Pre-treatment preparation Wipe eye skin with warm wet tissue or moisten electrode surface to guarantee good electrical conductivity; disinfect electrodes with 75% medical alcohol before and after use.
Wearing steps Put the frame on eyes, adjust elastic strap to a proper tightness.
Operation steps Short press power button to boot, set timing and intensity, short press power button again to start treatment; long press power button for 2 seconds to shut down after use.
Usage cycle suggestion Users under 12 years old: 10 mins per session; users over 12 years old: 15 mins per session. Use twice a day with an interval of at least 2 hours. 7–10 days as one course, rest 3–5 days between courses.
