Hair Growth Device Ls‑D630

Ⅰ. Highlights

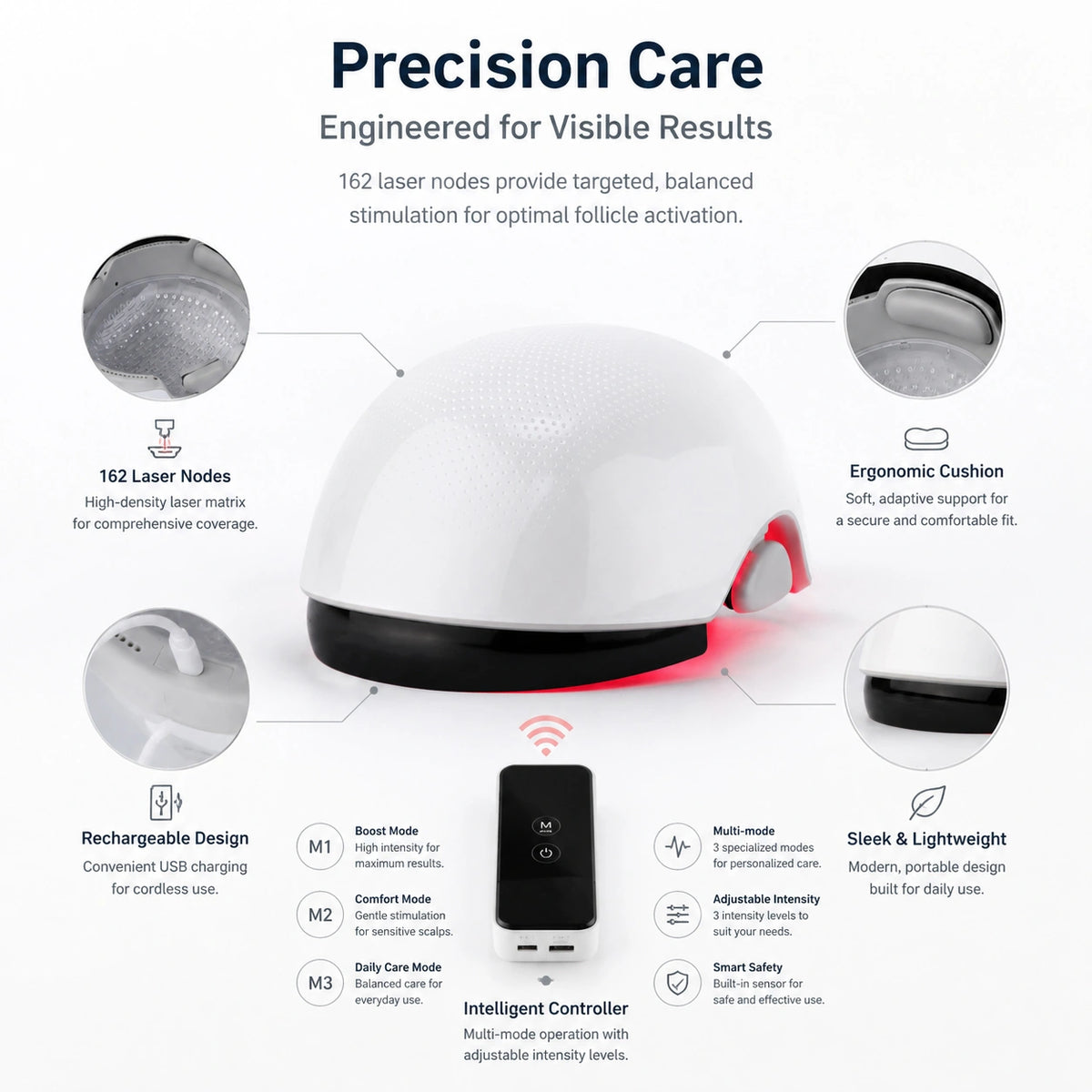

* 162 LLLT lasers + light guide optical lens design stimulate weakened hair follicles and enhance their growth vitality.

* Breakthrough optical lens and star-sky light energy matrix design; each of the 162 light sources is precisely calculated to form a star array.

* Wireless design, usable in any scenario.

* 3600mAh lithium battery, long-lasting battery life, up to 7 uses on a single charge.

* Built-in intelligent sensor light, emits light only upon sensing for enhanced safety.

* Elastic band design, freely adjustable size.

* Intelligent operating system with 12-minute timer.

* LLLT low-energy laser wavelength: 650+10nm

Ⅱ. Therapeutic Principle

The Hair Growth Device LS-D630 is composed of 162 class 2 lasers are laser output <1mW (wavelength: 650-660nm, power<1mW) configured within an outer helmet and protective inner liner. The combined light is absorbed by the scalp.

The use of diode lasers provides for a full coverage of the upper 1/3 of the head; i.e., the area commonly covered with stylized hair. The helmet system designed to automatically pause to therapy if the subject's head is moved outside of the zone of radiation and will resume therapy when the correct head position is re-established. At the end of the therapy cycle, the system signals that therapy is complete and ready to be powered down, by emitting an audible beep pattern.

The Hair Growth Device LS-D630 may produce 20% maximum output deviation in different treatment sites. It uses a non detachable polymer lithium battery for power supply, and the continuous use time for the battery is 80 minutes.

Ⅲ. Technical Parameters

Ⅳ. Range Of Application

The HAIR GROWTH DEVICE is indicated to promote hair growth in males with androgenetic alopecia who have Hamilton-Norwood Classifications of IIa-V and females with androgenic alopecia who have Ludwig-Savin Classifications of I-II and Fitzpatrick Classification of Skin Phototypes I to IV.

Ⅴ. How to Use

1. Connect the remote control and Shengfa helmet with the data cable. Press and hold the on/off key for 2 seconds to start or shut down the machine. The default time for starting up is 12 minutes, and the display is 12:00. The remote control will "drip" once when the machine is switched on and off. If the power is insufficient, the remote control will "drip" three times when it is automatically switched off.

2. Press the start/pause key for a short time to press the hair helmet to start working. All laser lights are always on. The timing is set to 12 minutes. Start the countdown. Press it again for a short time to pause. All laser lights are off and the timer is suspended. Press it again for a short time, and then the previous operation continues to work. It can cycle until the set time reaches automatic shutdown. Press the pause or start key, and the remote control will "drip" once.

3. When the use time expires, the remote control will send out a "drip" sound and turn off automatically.

Warning:

The helmet has infrared sensing function. It will not work normally until the helmet is worn correctly. When the helmet is removed on the right way, it will automatically stop working until it is worn again or the working time is over.

Treatment recommendations:

It is recommended that you use the hair growth device for 12 minutes every other day for 16 weeks. After 16 weeks you may wish to continue using the device for 12 minutes every other day according to your own hair growth results.
