MY USG-C10RL
MY USG-C10RL
Couldn't load pickup availability
Ⅰ．Highlights
1 Ultra-Portable
Approx. 90g lightweight design for convenient point-of-care ultrasound examinations.
2 Wi-Fi & USB Connectivity
Flexible wireless or Type-C wired connection to compatible mobile and Windows devices.
3 Multi-Platform Compatibility
Designed for Android, iOS and Windows devices.

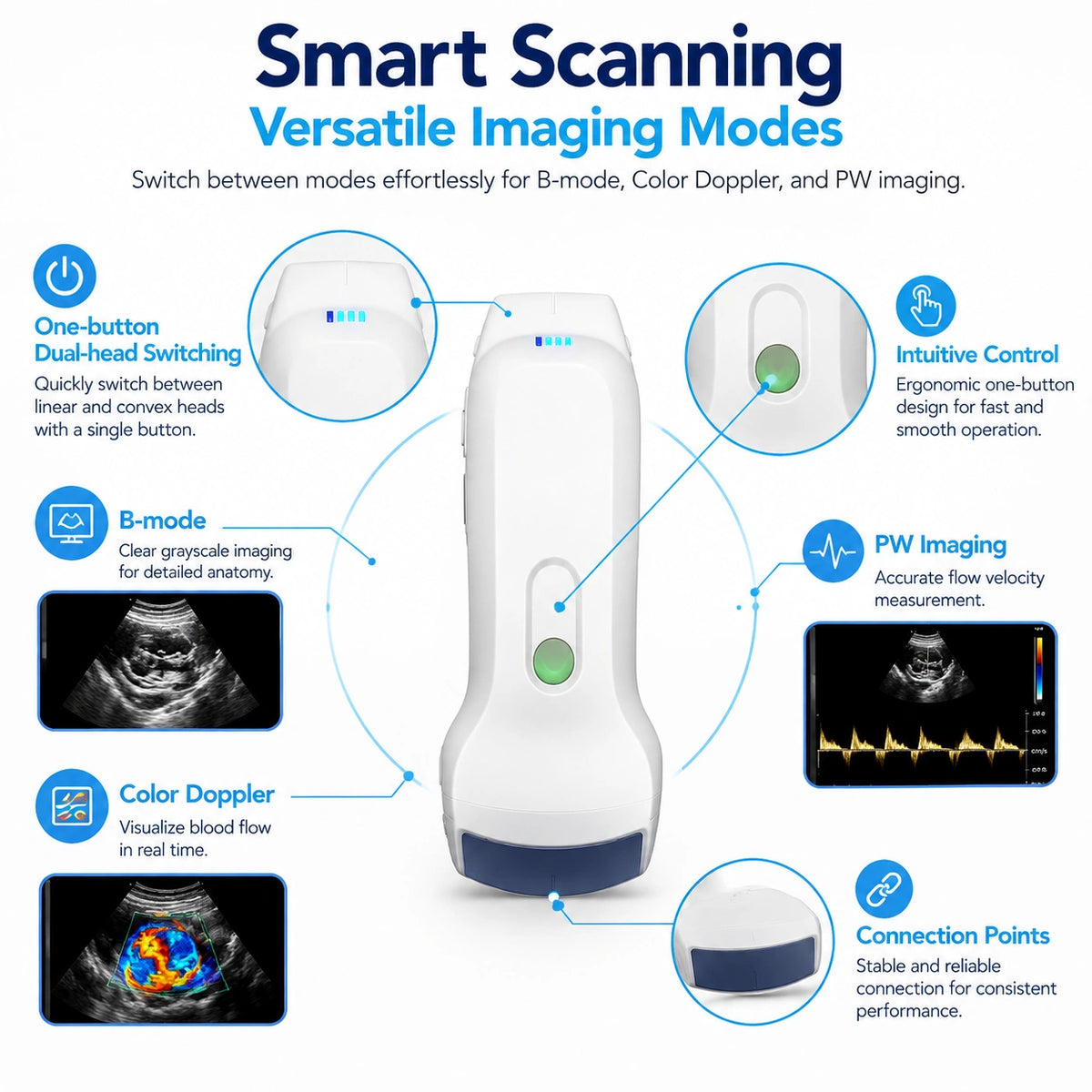

4 Multiple Imaging Modes
Supports B, B+M, Color Doppler, PW and Power Doppler modes.
5 Built-in Rechargeable Battery
2800mAh battery with ≥3 hours working time and ≥12 hours standby time.
6 Comprehensive Measurement Tools
Supports distance, area, circumference, angle, trace, heart rate and other measurement functions.
7 DICOM & PACS Support
Designed to facilitate digital image management and integration with compatible medical workflows.
8 Portable Point-of-Care Workflow
Compact probe + smart device + dedicated software, allowing ultrasound imaging to be brought closer to the patient.
Ⅱ．Principle
The probe captures ultrasound echoes → converts the acquired ultrasound signals into medical images → transmits them via Wi-Fi or USB to a smartphone, tablet, or Windows PC → and enables real-time viewing, measurement, annotation, and report management within the MY USG software.
The product supports imaging modes such as B, B+M, Color Doppler, PW, and Power Doppler, enabling the visualization of tissue structures and blood flow information to meet various examination needs. Users can perform scans by connecting the probe to an Android, iOS, or Windows device, eliminating the need for a traditional, large-scale ultrasound console.
Ⅲ．Technical Parameters
| Item | C10RL Specification |
| Product Type | Handheld USB + Wi-Fi Ultrasound |

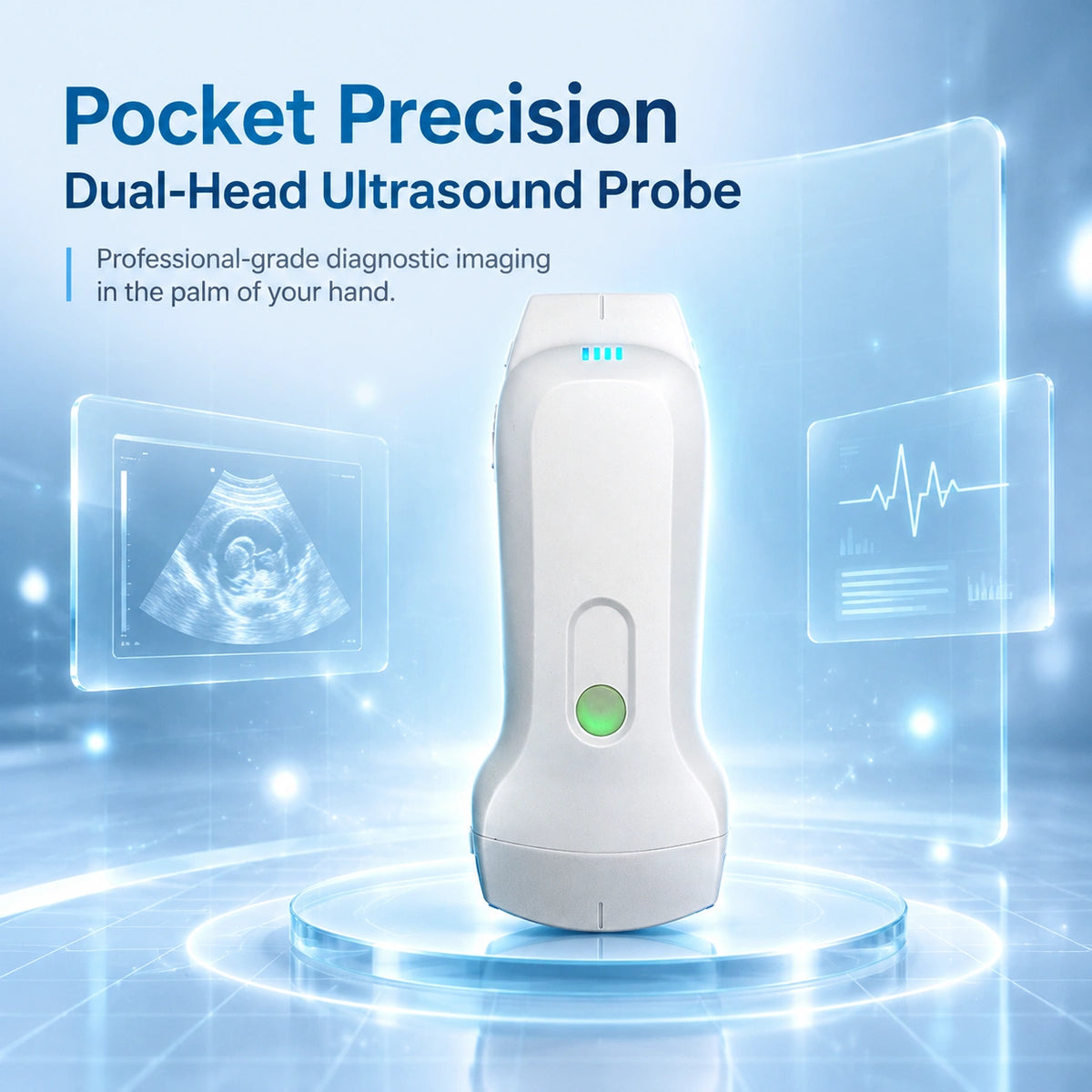

| Probe Design | Dual-Head Probe |
| Probe Configuration | Linear + Convex / Cardiac |
| Linear Frequency | 7.5 / 10 MHz |
| Linear Depth | 20–100 mm |
| Convex Frequency | 3.5 / 5 MHz |
| Convex Depth | 90–305 mm |
| Cardiac Frequency | 2.5 / 5 MHz |
| Cardiac Depth | 90–160 mm |
| Linear Footprint | L25 |
| Convex Radius | R45 |
| Imaging Modes | B, B+M, Color Doppler, PW, Power Doppler |
| Connectivity | Wi-Fi / USB Type-C |
| Compatible Devices | Android / iOS / Windows |
| Battery | Built-in Lithium Battery |
| Battery Capacity | 2800 mAh |
| Working Time | ≥3 hours |
| Standby Time | ≥12 hours |
| Charging | USB Cable / Wireless Charging Pad |
| Working While Charging | Supported |
| Probe Length | 125 mm |
| Net Weight | 90 g |
| Software | MY USG App |
| DICOM / PACS | Supported |
Ⅳ．Range Of Application
1.Small & Independent Clinics
A practical ultrasound solution for clinics that need versatile imaging capabilities without investing in a large, fixed ultrasound system.
2.Private Medical Practices
Suitable for routine examinations and point-of-care imaging in general practice and specialty settings.
3.Veterinary Clinics & Animal Hospitals
The portable design and multiple scanning presets can support ultrasound examinations in veterinary care settings.
4.Emergency & Point-of-Care Settings
Its compact design, wireless connectivity, and support for multiple imaging modes make it suitable for situations where flexible and accessible ultrasound imaging is needed.
5.Mobile Healthcare Services
The lightweight probe and wireless connection allow ultrasound imaging to be performed with compatible smartphones, tablets, or computers, supporting mobile and on-site applications.
