MY USG-C10RL Pro

Ⅰ．Highlights

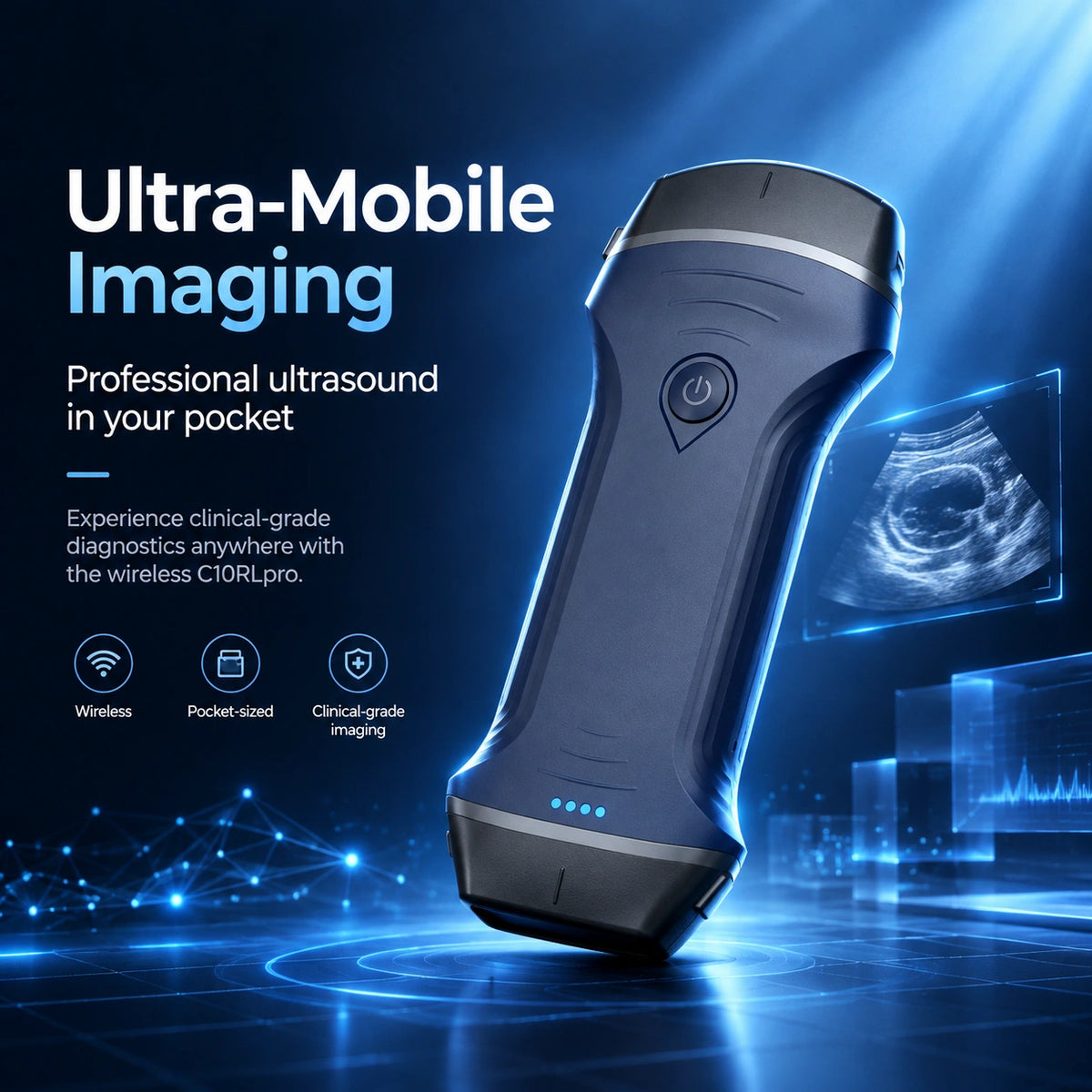

1. Pocket & portable, 3-in-1 connectivity: the probe is the whole machine — USB + built-in Wi-Fi, compatible with Windows / Android / iOS, usable while charging

2. Dual-head design: Convex probe (abdomen / general) + Cardiac probe (phased array) covers multiple departments in one device

3. 17 scan presets: Abdomen, Urology, Thyroid, Carotid, Gynecology, Kidney, Small Parts, Breast, Obstetric, Lung, Pediatrics, MSK, Vascular, Nerve, Vessel Flow, Cardiac

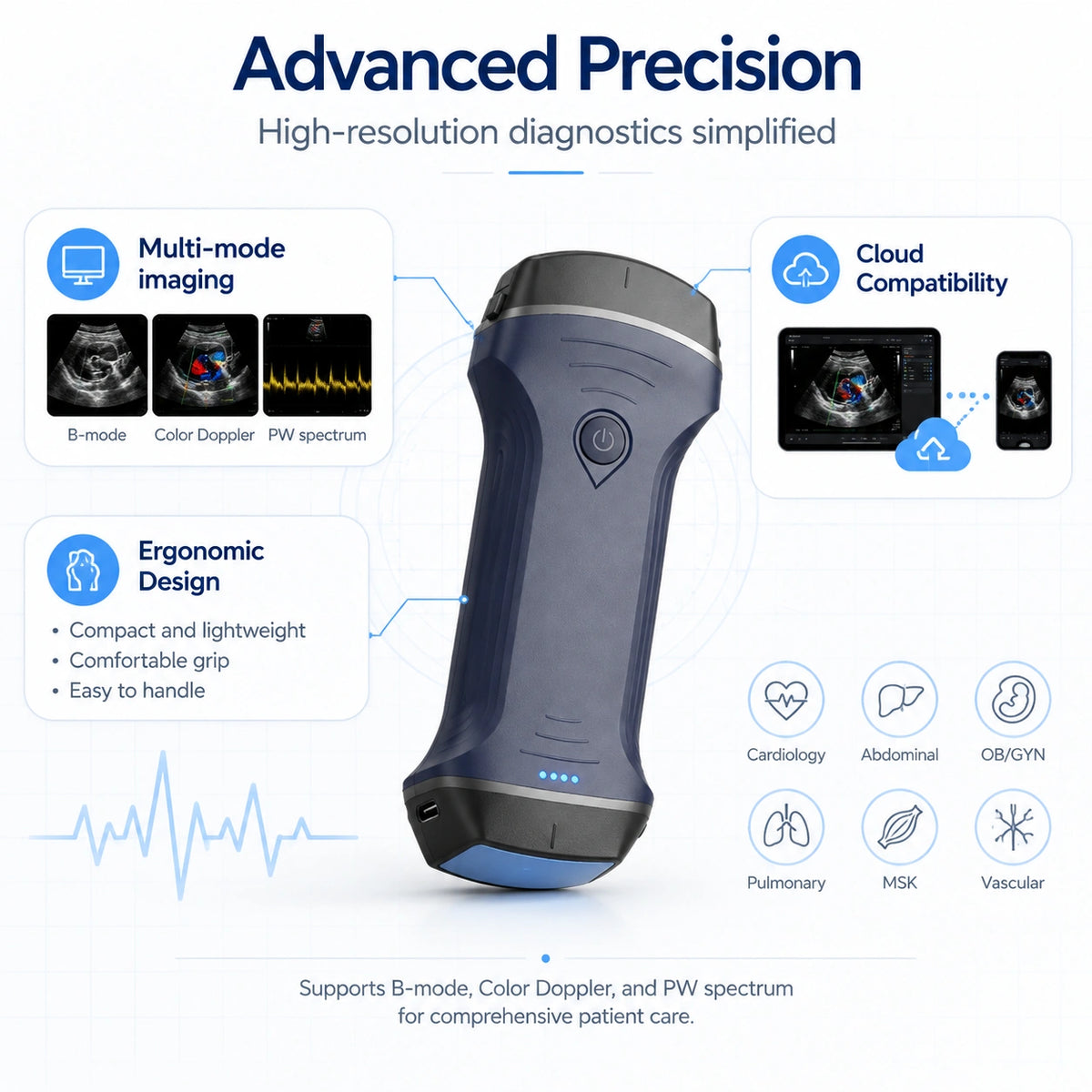

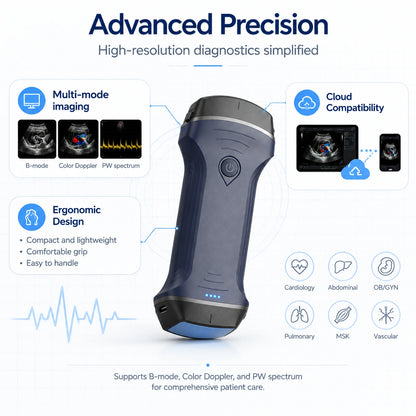

4. Full imaging modes: B, B/M, Color, PDI, PW, B+Color+PW (CW supported on C10CW-series models)

5. Auto vessel flow measurement: one-tap automatic TAMEAN, Flow, and Diam measurement

6. Comprehensive measurements: OB (GA/EFW), cardiac (HR/LVIDd/SV/EF), automatic volume via dual-screen L×W×H, and Measure Magnify for small targets

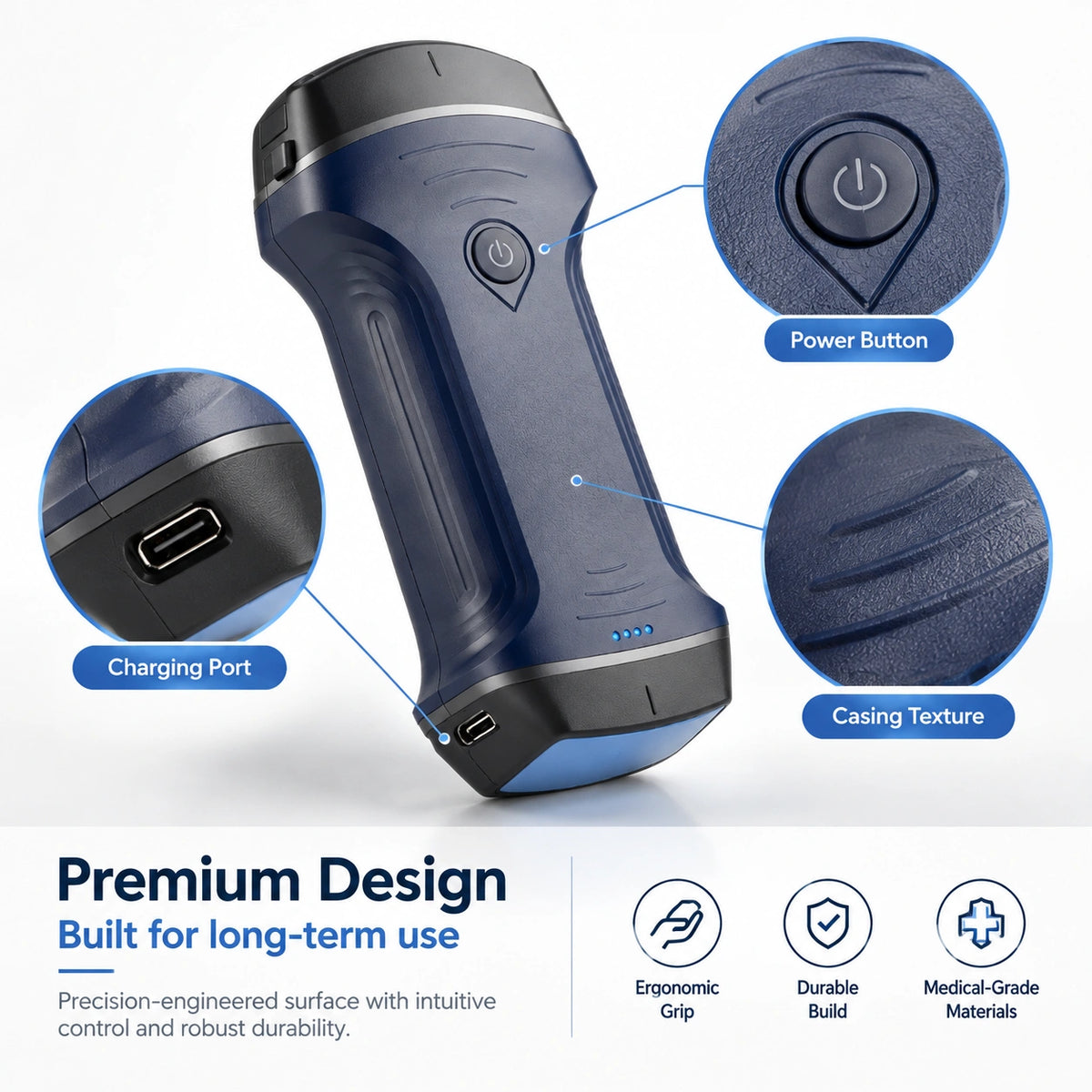

7. Wireless charging (FAST charger) + USB charging; built-in 2800 mAh battery (3 h working / >5 h standby)

8. Data management: save/share image, video, and report (jpg, avi, mp4, DICOM); DICOM upload to PACS; 500-file data table; report edit & print

9. Free app with continuous updates and unlimited users; 8-segment TGC, 15 body marks, dual-screen display, horizontal/vertical screen

Ⅱ．Principle

The probe's 128-element electronic array transmits ultrasound waves into the body → waves are reflected (echoes) at tissue interfaces → the probe receives the echoes and converts them into electrical signals → the app reconstructs a real-time gray-scale image, and Doppler processing adds Color / PDI / PW blood-flow information. No ionizing radiation is involved — it is real-time diagnostic ultrasound imaging.

Ⅲ．Technical Parameters

Ⅳ．Range Of Application

· Clinical use: ultrasound diagnosis of the abdomen, urology, gynecology, obstetrics, thyroid, breast, carotid, kidney, small parts, lungs, pediatrics, MSK, vascular, nerve, and vessel flow

· Settings: clinics, hospital wards, emergency rooms, operating theaters, and outreach visits
